Safe performance and reliability
The B680H has an Hybrid heart which, together
with its “everlasting” springs, allows it to exceed
2,000,000 cycles of continuous-use, raising 8 m beams in less than 6 seconds, in total safety,
thanks to the reverse on contact feature.

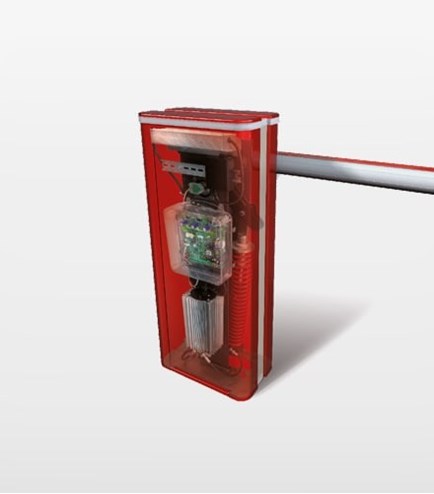

Removable housing
The B680H has an internal load-bearing structure and an external removable housing. This design gives the system great stability and permits easy replacement of the housing.

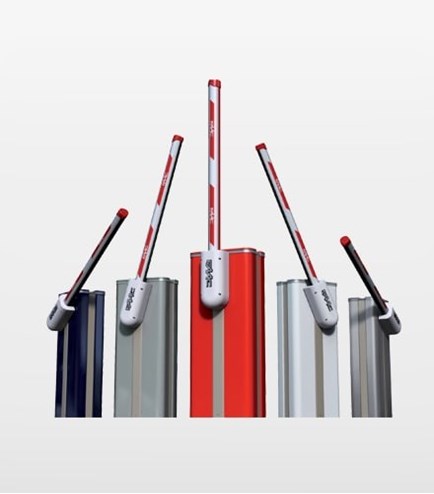

Extreme flexibility and optimisation of logistics
One single model controls passages with a net
width from 2 m to 8 m. Its modular beams make
the B680H a product which is easy to manage
and handle.

Full visibility and control of traffic
The programmable integrated flashing traffic
light connector guarantees perfect regulation

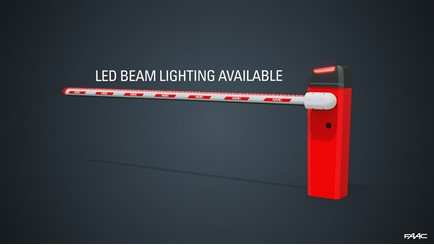

of traffic, while the LED beam lights adequately
signal closing of the passage even under
conditions of poor visibility.

Switching power supply
The switching power supply, with high energy efficiency and extended range, ensures  operation of barriers from 100 Vac to 240 Vac, protecting them from any changes in voltage
occurring with non-optimal powersupply systems.

Integrated absolute encoder
Absolute encoder kit for complete control of movement and reversing of beam when an obstacle is detected: this ensures that the impact curve can be respected, ensuring that
pedestrian passages also comply with safety standards.

“Everlasting” springs
The springs of the B680H have been designed to exceed 2,000,000 cycles.

24V Hybrid heart
The hydraulic pump with brushless motor permits the movement of long or short beams at high speed and continuous cycle (100% duty cycle).

Backup batteries
Installing the XBAT 24 module (high-performance Nickel-Metal Hydride batteries), including battery charger, ensures the operation of the B680H even during a black out.

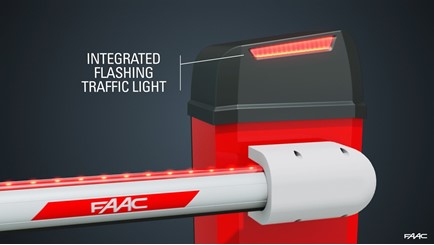

Integrated flashing traffic light
The flashing traffic light is entirely integrated into the structure, so it cannot be damaged. The operation of its red and green high-efficiency LEDs may be programmed by the board.

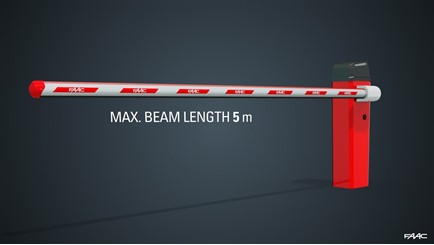

Elliptically-profiled modular beams
The longest beams are obtained joining two modules up to a maximum of 8.3 m (a net gate area width of 8 m) to ease transportation. Once the modules have been assembled, the connection joint is invisible and LED lighting may be fixed to the entire length of the bar. All the beams are windproof, round or elliptically
profiled and are supplied with rubber rotection on the bottom.

Sophisticated electronics with integrated Loop Detector
The E680S microprocessor control board ensures integration of the B680H with complex
control systems. It has numerous  programmable outputs and inputs and a connector for GSM, Ethernet and Wi-Fi modules. Two integrated, high-sensitivity Loop Detectors ensure the containment of system costs.

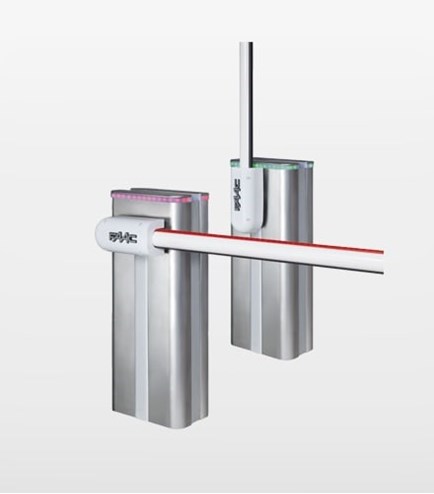

Removable housing
The housing is non load-bearing and may be easily replaced, with the upright post remaining in place. It is available in stainless-steel or steel versions, with the innovative, 100-micron, epoxy zinc primer anti-corrosion treatment, with four colours available.
